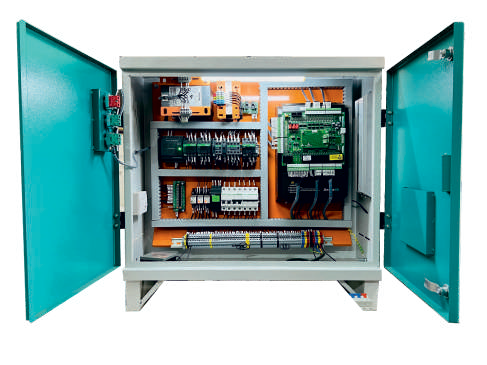

Close Loop Integrated Controller
APB-200High-capacity lift controller with 3.7–20KW drive support, 16-stop full collective operation, 1.5 m/s speed, semi-auto door control, gearless motor support, and advanced 4-pole MCB + RCCB protection.
Drive KW3.7 KW, 5.5KW, 7.5KW, 11KW, 15KW, 18KW, 20KW
Number of Stops16 Stops Full Collective
SpeedUp to 1.5 mps
Controller TypeAuto Door / Manual Door / Semi Auto Door
Display Output7 Segment, Binary, Gray
Motor SuitableGeared AC Motor/ Gearless Ac Motor
Overall Cabinet Size1480 x 320 x 250 / 670 x 750 x 250
DBRSeparately housed in a DBR box
Cabinet Locks2Nos Chrome Plated Aesthetic Locks
ARD InterfaceProvided as Constant;(Contactors SC and UPC provided)
Power supply for 24V DCSMPS type, mounted on DIN rall;Input : 110-230V AC, output : 24V DC, 2.5/5Amps
Safely Interface110V AC safely Chain
Field terminations for Power TerminalsScrew terminals (Connectwell / Elmax make) provided of 4.0 sq mm wire capacity
Field terminations for Control TerminalsScrew terminals (Connectwell/ ELmax make) provided of 2.5 sq mm wire capacity
TransformerPrimary : 600VA, 440V, AC, 2Phase
MCB ProtectionMCB1 - 4Pole for 415-230V Power Incomer.;MCB2 - 2Pole for UPS Power Incomer.;MCB3 - 1Pole for 110V Safety Chain & Contactor.;MCB4 - 1Pole For Panel Light
RCCB Protection25Amp - 30mA - 2 Pole
Three Phase Power Failure RelayGic / Selec / cemic
Controller InspectionPanel with U, D button and Selector switch
Landing door Jumper ProtectionProtection provided through connectors
Line (Input) ChokeProvided as a Constant
DBR RatingAs Per Panel Requirement
